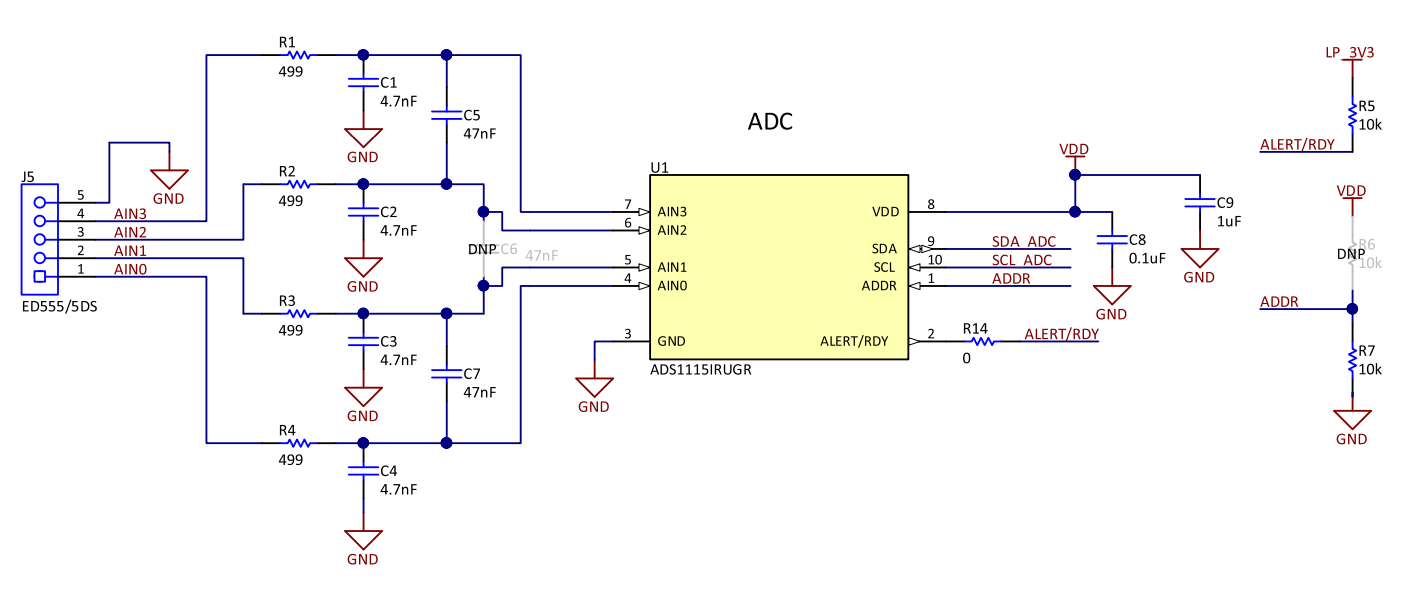

应用电路

注意输入串联的电阻499R，以及电容4.7nF

对外的接口都需要上拉电阻（特别注意RDY的上拉电阻)

参考程序

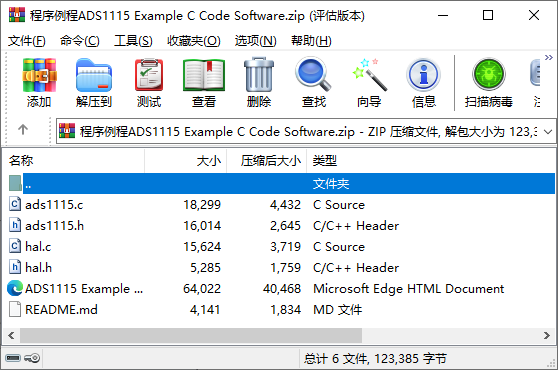

参考程序文件列表



 参考程序代码

/**
 * @file hal.h
 *
 * @brief Example of a hardware abstraction layer
 * @warning This software utilizes TI Drivers
 *
 * @copyright Copyright (C) 2021 Texas Instruments Incorporated - http://www.ti.com/
 *
 *  Redistribution and use in source and binary forms, with or without
 *  modification, are permitted provided that the following conditions
 *  are met:
 *
 *    Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 *    Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in the
 *    documentation and/or other materials provided with the
 *    distribution.
 *
 *    Neither the name of Texas Instruments Incorporated nor the names of
 *    its contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 *  THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 *  "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
 *  LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
 *  A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
 *  OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 *  SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 *  LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
 *  DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
 *  THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
 *  (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
 *  OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 */


#ifndef HAL_H_
#define HAL_H_

#include "ads1115.h"

//****************************************************************************
//
// Standard libraries
//
//****************************************************************************
#include <stdbool.h>
#include <stdint.h>



//****************************************************************************
//
// Insert processor specific header file(s) here
//
//****************************************************************************

/*  --- INSERT YOUR CODE HERE --- */
#include "ti/devices/msp432e4/driverlib/driverlib.h"


//****************************************************************************
//
// BoosterPack pinout...LP
//
//****************************************************************************
//
//                  LEFT                                RIGHT
//               /--------\                          /--------\
//        +3.3V -|3V3  +5V|- +5V                    -|PG1  GND|- GND
//              -|PD2  GND|- GND                    -|PK4  PM7|-
//              -|PP0  PB4|-                        -|PK5 *PP5|-
//              -|PP1  PB5|-                        -|PM0  PA7|-
//              -|PD4  PK0|-                        -|PM1  RST|-
//              -|PD5  PK1|-                        -|PM2  PQ2|-
//              -|PQ0  PK2|-                        -|PH0  PQ3|-
//              -|PP4* PK3|-                        -|PH1 *PP3|-
//          SCL -|PN5  PA4|-                        -|PK6  PQ1|-
//          SDA -|PN4  PA5|-              ALERT/RDY -|PK7  PM6|-
//               \--------/                          \--------/
//
//****************************************************************************

//*****************************************************************************
//
// Pin definitions (MSP432E401Y)
//
//*****************************************************************************
#define ALERT_RDY_PORT          (GPIO_PORTK_BASE)
#define ALERT_RDY_PIN           (GPIO_PIN_7)
#define ALERT_RDY_INT           (INT_GPIOK7)
#define I2Cbus 0    // Used in TI Drivers implementation
//*****************************************************************************
//
// Function Prototypes
//
//*****************************************************************************
void InitADC(void);
void delay_ms(const uint32_t delay_time_ms);
void delay_us(const uint32_t delay_time_us);

int8_t sendI2CData(uint8_t address, uint8_t *arrayIndex, uint8_t length);
int8_t sendI2CRegPointer(uint8_t address, uint8_t *arrayIndex, uint8_t length);
int8_t receiveI2CData(uint8_t address, uint8_t *arrayIndex, uint8_t length);
int8_t receiveI2CDataNoWrite(uint8_t address, uint8_t *arrayIndex, uint8_t length, bool noWrite);

bool getALERTinterruptStatus(void);
bool waitForALERTinterrupt(const uint32_t timeout_ms);
void setALERTinterruptStatus(const bool value);
void enableALERTinterrupt(const bool intEnable);
void GPIO_ALERT_IRQHandler(uint_least8_t index);

//*****************************************************************************
//
// Macros
//
//*****************************************************************************
/** Alias used for setting GPIOs pins to the logic "high" state */
#define HIGH                ((bool) true)

/** Alias used for setting GPIOs pins to the logic "low" state */
#define LOW                 ((bool) false)



#endif /* HAL_H_ */

/**
 * @file hal.c
 *
 * @brief Example of a hardware abstraction layer
 * @warning This software utilizes TI Drivers
 *
 * @copyright Copyright (C) 2021 Texas Instruments Incorporated - http://www.ti.com/
 *
 *  Redistribution and use in source and binary forms, with or without
 *  modification, are permitted provided that the following conditions
 *  are met:
 *
 *    Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 *    Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in the
 *    documentation and/or other materials provided with the
 *    distribution.
 *
 *    Neither the name of Texas Instruments Incorporated nor the names of
 *    its contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 *  THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 *  "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
 *  LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
 *  A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
 *  OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 *  SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 *  LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
 *  DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
 *  THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
 *  (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
 *  OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 */

#include "hal.h"
/* Following statements relate to use of TI Driver implementation */
#include <ti/drivers/I2C.h>
#include <ti/drivers/i2c/I2CMSP432E4.h>
extern I2C_Handle g_I2Chandle;

//****************************************************************************
//
// Internal variables
//
//****************************************************************************
// Flag to indicate if an ALERT/RDY interrupt has occurred
static volatile bool flag_nALERT_INTERRUPT = false;
//****************************************************************************
//
// Internal function prototypes
//
//****************************************************************************
void InitGPIO(void);
void InitI2C(void);

//****************************************************************************
//
// External Functions (prototypes declared in hal.h)
//
//****************************************************************************
/**
 * @brief getALERTinterruptStatus()
 * Gets the current status of ALERT/RDY interrupt flag.
 *
 * @ return boolean status of flag_nALERT_INTERRUPT.
 */
bool getALERTinterruptStatus(void)
{
   return flag_nALERT_INTERRUPT;
}
/**
 * @brief setALERTinterruptStatus(void)
 * Sets the value of the ALERT/RDY interrupt flag.
 *
 * @param[in] value where status is set with true; false clears the status.
 *
 * @return none
 */
void setALERTinterruptStatus(const bool value)
{
    flag_nALERT_INTERRUPT = value;
}
/**
 *
 * @brief enableALERTinterrupt()
 * Enables or disables the ALERT/RDY interrupt.
 *
 * @param[in] intEnable Where interrupt is enabled with true; false disables the interrupt.
 *
 * @return none
 */
void enableALERTinterrupt(const bool intEnable)
{
    /* --- INSERT YOUR CODE HERE --- */

    /* The following code is based on a TI Drivers implementation */
    if(intEnable)
    {
        flag_nALERT_INTERRUPT = false;
        GPIO_clearInt(ALERT_CONST);
        SysCtlDelay(10);
        GPIO_enableInt(ALERT_CONST);
    }
    else GPIO_disableInt(ALERT_CONST);
}
/**
 *
 * @brief InitADC()
 * Initializes MCU peripherals for interfacing with the ADC.
 *
 * @return none
 */
void InitADC(void)
{
    // IMPORTANT: Make sure device is powered before setting GPIOs pins to HIGH state.

    // Initialize GPIOs pins used by ADS1x15
    InitGPIO();
    /* Call driver init functions */
    InitI2C();
    // Run ADC startup function (in ADS1115.c)
    adcStartup();
}

//****************************************************************************
//
// Timing functions
//
//****************************************************************************

/**
 *
 * @brief delay_ms()
 * Provides a timing delay with 'ms' resolution.
 *
 * @param[in] delay_time_ms Is the number of milliseconds to delay.
 *
 * @return none
 */
void delay_ms(const uint32_t delay_time_ms)
{
    /* --- INSERT YOUR CODE HERE --- */

    const uint32_t cycles_per_loop = 3;
    uint32_t delayTime = getSysClockHz() / (cycles_per_loop * 1000u);
    delayTime = delayTime * delay_time_ms;
    MAP_SysCtlDelay( delayTime );
}
/**
 *
 * @brief delay_us()
 * Provides a timing delay with 'us' resolution.
 *
 * @param[in] delay_time_us Is the number of microseconds to delay.
 *
 * @return none
 */
//
void delay_us(const uint32_t delay_time_us)
{
    /* --- INSERT YOUR CODE HERE --- */

    const uint32_t cycles_per_loop = 3;
    uint32_t delayTime = getSysClockHz() / (cycles_per_loop * 1000000u);
    delayTime = delayTime * delay_time_us;
    MAP_SysCtlDelay( delayTime );
}

//****************************************************************************
//
// GPIO initialization
//
//****************************************************************************

/**
 *
 * @brief InitGPIO()
 * Configures the MCU's GPIO pins that interface with the ADC.
 *
 * @return none
 *
 */
void InitGPIO(void)
{
    /* --- INSERT YOUR CODE HERE --- */
    // NOTE: Not all hardware implementations may control each of these pins...

    /* The following code is based on a TI Drivers implementation */

    /* Call driver init functions */
    GPIO_init();

    /* Set the interrupt callback function */
    GPIO_setCallback(ALERT_CONST,GPIO_ALERT_IRQHandler );

}
//*****************************************************************************
//
// Interrupt handler for ALERT/RDY GPIO
//
//*****************************************************************************

/**
 *
 * @brief GPIO_ALERT_IRQHandler()
 * Interrupt handler for ALERT/RDY falling edge interrupt.
 *
 * @param[in] index Position of the interrupt for callback.
 *
 * @return none
 */
void GPIO_ALERT_IRQHandler(uint_least8_t index)
{
    /* --- INSERT YOUR CODE HERE --- */

    /* NOTE: You many need to rename or
     * register this interrupt function for your processor.
     *  - Possible ways to handle this interrupt:
     *  1. If you decide to read data here, you may want to
     *      disable other interrupts to avoid partial data reads.
     *  2. Set a flag to read during a polling loop
     *
     *  In this example we set a flag and exit the interrupt routine.
     *  In the main program loop, your application can examine
     *  all state flags and decide which state (operation) to perform next.
     */

    /* Interrupt action: Set a flag */
    flag_nALERT_INTERRUPT = true;
}

//****************************************************************************
//
// GPIO helper functions
//
//****************************************************************************
/**
 *
 * @brief waitForALERTinterrupt()
 * Waits for the ALERT/RDY interrupt or until the specified timeout occurs.
 *
 * @param[in] timeout_ms Number of milliseconds to wait before timeout event.
 *
 * @return Returns 'true' if ALERT/RDY interrupt occurred before the timeout.
 */
bool waitForALERTinterrupt(const uint32_t timeout_ms)
{
    /* --- INSERT YOUR CODE HERE ---
     *
     * Poll the ALERT/RDY GPIO pin until it goes low. To avoid potential infinite
     * loops, you may also want to implement a timer interrupt to occur after
     * the specified timeout period, in case the ALERT/RDY pin is not active.
     * Return a boolean to indicate if ALERT/RDY went low or if a timeout occurred.
     */

    /* The following code is based on a TI Drivers implementation */

    // Convert ms to a # of loop iterations, OR even better use a timer here...
    uint32_t timeout = timeout_ms * 6000;   // convert to # of loop iterations

    // Reset interrupt flag
    flag_nALERT_INTERRUPT = false;

    // Enable interrupts
    GPIO_clearInt(ALERT_CONST);
    delay_us(1);
    GPIO_enableInt(ALERT_CONST);

    // Wait for nDRDY interrupt or timeout - each iteration is about 20 ticks
    do {
        timeout--;
    } while (!flag_nALERT_INTERRUPT && (timeout > 0));

    GPIO_disableInt(ALERT_CONST);

    // Reset interrupt flag
    flag_nALERT_INTERRUPT = false;

    // Timeout counter greater than zero indicates that an interrupt occurred
    return (timeout > 0);
}
/**
 *
 * @brief InitI2C()
 * Configures the MCU's I2C peripheral, for interfacing with target devices.
 *
 * @return none
 */
void InitI2C(void)
{
    /* --- INSERT YOUR CODE HERE --- */

    //
    // Enabling I2C2 peripheral.
    //

    //
    // Configuring the pin muxing for I2C2 functions.
    //

    //
    // Enabling and initializing the I2C2 master module.
    //

    /* The following code is based on a TI Drivers implementation */

    /* Call driver init functions */
    I2C_init();
}

/**
 *
 * @brief sendI2CData()
 * Configures the MCU's I2C peripheral, for interfacing with target devices.
 *
 * @param[in] address Of target device.
 * @param[in] arrayIndex Is pointer to an array of data to be transmitted.
 * @param[in] length Of the data array.
 *
 * @return 0 is communication success; < 0 is communication failure.
 */
int8_t sendI2CData(uint8_t address, uint8_t *arrayIndex, uint8_t length)
{
    /* --- INSERT YOUR CODE HERE --- */

    /* The following code is based on a TI Drivers implementation */
    int8_t retStatus = 0;
    uint8_t wData[256];
    uint8_t rData[1];
    wData[0] = address;
    uint16_t i;
    // Copy the data array
    for(i = 1; i < (length + 1); i++)
    {
        wData[i] = arrayIndex[i-1];
    }
    //
    // Initialize the optional I2C bus parameters
    //
    I2C_Params params;
    I2C_Params_init(&params);
    params.bitRate = I2C_400kHz;
    //
    // Open the I2C bus for usage
    //
    I2C_Handle i2cHandle = I2C_open(I2Cbus, &params);
    //
    // Initialize the slave address for transactions
    //
    I2C_Transaction transaction = {0};
    transaction.slaveAddress = ADS1115_ADDRESS;
    transaction.readBuf = rData;
    transaction.readCount = 0;
    transaction.writeBuf = wData;
    transaction.writeCount = length + 1;
    retStatus = I2C_transfer(i2cHandle, &transaction);

    //
    // Return error, if read failed
    //
    if (retStatus == false)
    {
        /* Send error response here then close the port */
        I2C_close(i2cHandle);
        return -1;
    }

    I2C_close(i2cHandle);

    return 0;
}
/**
 *
 * @brief sendI2CRegPointer()
 * Write to set the desired pointer position for reading/writing register data.
 *
 * @param[in] address Of target device.
 * @param[in] arrayIndex Is pointer to an array of data to be transmitted.
 * @param[in] length Of the data array.
 *
 * @return 0 is communication success; < 0 is communication failure.
 */
int8_t sendI2CRegPointer(uint8_t address, uint8_t *arrayIndex, uint8_t length)
{
    /* --- INSERT YOUR CODE HERE --- */

    /* The following code is based on a TI Drivers implementation */

    int8_t retStatus = 0;
    uint8_t wData[256];
    uint8_t rData[1];
    wData[0] = address;
    uint16_t i;

    for(i = 1; i < (length + 1); i++)
    {
        wData[i] = arrayIndex[i-1];
    }

    //
    // Initialize the slave address for transactions
    //
    I2C_Transaction transaction = {0};
    transaction.slaveAddress = ADS1115_ADDRESS;

    transaction.readBuf = rData;
    transaction.readCount = 0;
    transaction.writeBuf = wData;
    transaction.writeCount = length + 1;
    retStatus = I2C_transfer(g_I2Chandle, &transaction);

    //
    // Return error, if read failed
    //
    if (retStatus == false)
    {
        // Add error handling routine
        return -1;
    }

    return 0;
}
/**
 *
 * @brief receiveI2CData()
 * Read data from the desired pointer position for register data.
 *
 * @param[in] address Of target device.
 * @param[out] arrayIndex Is pointer to an array of data to be transmitted.
 * @param[in] length Of the data array.
 *
 * @return 0 is communication success; < 0 is communication failure.
 */
int8_t receiveI2CData(uint8_t address, uint8_t *arrayIndex, uint8_t length)
{
    /* --- INSERT YOUR CODE HERE --- */

    /* The following code is based on a TI Drivers implementation */

    int8_t retStatus = 0;
    uint8_t wData[1];
    uint8_t rData[256];
    wData[0] = address;
    uint16_t i;
    //
    // Initialize the optional I2C bus parameters
    //
    I2C_Params params;
    I2C_Params_init(&params);
    params.bitRate = I2C_400kHz;
    //
    // Open the I2C bus for usage
    //
    I2C_Handle i2cHandle = I2C_open(I2Cbus, &params);
    //
    // Initialize the slave address for transactions
    //
    I2C_Transaction transaction = {0};
    transaction.slaveAddress = ADS1115_ADDRESS;

    transaction.readBuf = rData ;
    transaction.readCount = length;
    transaction.writeBuf = wData;
    transaction.writeCount = 1;
    retStatus = I2C_transfer(i2cHandle, &transaction);

    //
    // Return error, if read failed
    //
    if (retStatus == false)
    {
        I2C_close(i2cHandle);
        // Insert error handling routine
        return -1;
    }

    I2C_close(i2cHandle);

    for(i = 0; i < length; i++)
    {
        arrayIndex[i] = rData[i];
    }

    return 0;
}
/**
 *
 * @brief receiveI2CDataNoWrite()
 * Read data from the desired pointer position for register data.
 *
 * @param[in] address Of target device.
 * @param[out] arrayIndex Is pointer to an array of data to be transmitted.
 * @param[in] length Of the data array.
 * @param[in] noWrite Boolean of condition if write command is required.
 * false = no write of device address, true = write device address
 *
 * @return 0 is communication success; < 0 is communication failure.
 */
int8_t receiveI2CDataNoWrite(uint8_t address, uint8_t *arrayIndex, uint8_t length, bool noWrite)
{
    /* --- INSERT YOUR CODE HERE --- */

    /* The following code is based on a TI Drivers implementation */

    int8_t retStatus = 0;
    uint8_t wData[1];
    uint8_t rData[256];
    wData[0] = address;
    uint16_t i;
    //
    // Initialize the slave address for transactions
    //
    I2C_Transaction transaction = {0};
    transaction.slaveAddress = ADS1115_ADDRESS;

    transaction.readBuf = rData ;
    transaction.readCount = length;
    transaction.writeBuf = wData;
    if(noWrite) transaction.writeCount = 0;
    else transaction.writeCount = 1;
    retStatus = I2C_transfer(g_I2Chandle, &transaction);

    //
    // Return error, if read failed
    //
    if (retStatus == false)
    {
        // Insert error handling routine
        return -1;
    }

    for(i = 0; i < length; i++)
    {
        arrayIndex[i] = rData[i];
    }

    return 0;
}

/**
 * @file ads1115.h
 *
 * @brief This header file contains all register map definitions for the ADS1115 device family.
 * @warning This software utilizes TI Drivers
 *
 * @copyright Copyright (C) 2021 Texas Instruments Incorporated - http://www.ti.com/
 *
 *  Redistribution and use in source and binary forms, with or without
 *  modification, are permitted provided that the following conditions
 *  are met:
 *
 *    Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 *    Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in the
 *    documentation and/or other materials provided with the
 *    distribution.
 *
 *    Neither the name of Texas Instruments Incorporated nor the names of
 *    its contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 *  THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 *  "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
 *  LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
 *  A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
 *  OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 *  SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 *  LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
 *  DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
 *  THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
 *  (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
 *  OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 */
#ifndef ADS1115_H_
#define ADS1115_H_

//****************************************************************************
//
// Standard Libraries
//
//****************************************************************************
#include <assert.h>
#include <stdbool.h>
#include <stdint.h>
#include <string.h>
//****************************************************************************
//
// Custom Libraries
//
//****************************************************************************
#include "hal.h"
//****************************************************************************
//
// Global variables
//
//****************************************************************************
extern const char *adcRegisterNames[];
#define ADS1115_ADDRESS 0x48

//**********************************************************************************
//
// Function prototypes
//
//**********************************************************************************
void adcStartup(void);
uint16_t readSingleRegister(uint8_t address);
int32_t readConversionRegister(void);
bool writeSingleRegister(uint8_t address, uint16_t data);
bool writeSingleRegisterNoRead(uint8_t address, uint16_t data);
void delayBeforeRead(void);
bool resetDevice(void);
int16_t readData(void);
uint16_t startAdcConversion(void);
uint16_t stopAdcConversion(void);

// Getter functions
uint16_t getRegisterValue(uint8_t address);

// Helper functions
uint8_t upperByte(uint16_t uint16_Word);
uint8_t lowerByte(uint16_t uint16_Word);
uint16_t combineBytes(uint8_t upperByte, uint8_t lowerByte);
int32_t signExtend(const uint8_t dataBytes[]);

//****************************************************************************
//
// Register macros
//
//****************************************************************************

#define WLENGTH     1

//**********************************************************************************
//
// Device commands
//
//**********************************************************************************

//****************************************************************************
//
// Constants
//
//****************************************************************************
/* The threshold register do not exist on the TLA2024, ADS1013 or ADS1113
 * ----when using these devices reduce the count by 2
 */
#define NUM_REGISTERS                           ((uint8_t) 4)
/** Maximum register address or address of the last register in the regmap */
#define MAX_REGISTER_ADDRESS                    ((uint8_t) 3)




//**********************************************************************************
//
// Register definitions
//
//**********************************************************************************


/* Register 0x00 (CONVERSION) definition
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 * |   Bit 15  |   Bit 14  |   Bit 13  |   Bit 12  |   Bit 11  |   Bit 10  |   Bit 9   |   Bit 8   |   Bit 7   |   Bit 6   |   Bit 5   |   Bit 4   |   Bit 3   |   Bit 2   |   Bit 1   |   Bit 0   |
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 * |                                                                                           CONV[15:0]                                                                                          |
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 */

    /* CONVERSION register address */
    #define CONVERSION_ADDRESS                                              ((uint16_t) 0x00)

    /* CONVERSION default (reset) value */
    #define CONVERSION_DEFAULT                                              ((uint16_t) 0x0000)

    /* CONVERSION register field masks */
    #define CONVERSION_CONV_MASK                                            ((uint16_t) 0xFFFF)



/* Register 0x01 (CONFIG) definition
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 * |   Bit 15  |   Bit 14  |   Bit 13  |   Bit 12  |   Bit 11  |   Bit 10  |   Bit 9   |   Bit 8   |   Bit 7   |   Bit 6   |   Bit 5   |   Bit 4   |   Bit 3   |   Bit 2   |   Bit 1   |   Bit 0   |
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 * |     OS    |              MUX[2:0]             |              PGA[2:0]             |    MODE   |              DR[2:0]              | COMP_MODE |  COMP_POL |  COMP_LAT |     COMP_QUE[1:0]     |
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 */

    /* CONFIG register address */
    #define CONFIG_ADDRESS                                                  ((uint16_t) 0x01)

    /* CONFIG default (reset) value */
    #define CONFIG_DEFAULT                                                  ((uint16_t) 0x8583)

    /* CONFIG register field masks */
    #define CONFIG_OS_MASK                                                  ((uint16_t) 0x8000)
    #define CONFIG_MUX_MASK                                                 ((uint16_t) 0x7000)
    #define CONFIG_PGA_MASK                                                 ((uint16_t) 0x0E00)
    #define CONFIG_MODE_MASK                                                ((uint16_t) 0x0100)
    #define CONFIG_DR_MASK                                                  ((uint16_t) 0x00E0)
    #define CONFIG_COMP_MODE_MASK                                           ((uint16_t) 0x0010)
    #define CONFIG_COMP_POL_MASK                                            ((uint16_t) 0x0008)
    #define CONFIG_COMP_LAT_MASK                                            ((uint16_t) 0x0004)
    #define CONFIG_COMP_QUE_MASK                                            ((uint16_t) 0x0003)

    /* OS field values */
    #define CONFIG_OS_CONVERTING                                            ((uint16_t) 0x0000)
    #define CONFIG_OS_CONV_START                                            ((uint16_t) 0x8000)

    /* MUX field values */
    #define CONFIG_MUX_AIN0_AIN1                                            ((uint16_t) 0x0000)
    #define CONFIG_MUX_AIN0_AIN3                                            ((uint16_t) 0x1000)
    #define CONFIG_MUX_AIN1_AIN3                                            ((uint16_t) 0x2000)
    #define CONFIG_MUX_AIN2_AIN3                                            ((uint16_t) 0x3000)
    #define CONFIG_MUX_AIN0_GND                                             ((uint16_t) 0x4000)
    #define CONFIG_MUX_AIN1_GND                                             ((uint16_t) 0x5000)
    #define CONFIG_MUX_AIN2_GND                                             ((uint16_t) 0x6000)
    #define CONFIG_MUX_AIN3_GND                                             ((uint16_t) 0x7000)

    /* PGA field values */
    #define CONFIG_PGA_6p144V                                               ((uint16_t) 0x0000)
    #define CONFIG_PGA_4p096V                                               ((uint16_t) 0x0200)
    #define CONFIG_PGA_2p048V                                               ((uint16_t) 0x0400)
    #define CONFIG_PGA_1p024V                                               ((uint16_t) 0x0600)
    #define CONFIG_PGA_0p512V                                               ((uint16_t) 0x0800)
    #define CONFIG_PGA_0p256V                                               ((uint16_t) 0x0A00)
//    #define CONFIG_PGA_                                                     ((uint16_t) 0x0E00)

    /* MODE field values */
    #define CONFIG_MODE_CONT                                                ((uint16_t) 0x0000)
    #define CONFIG_MODE_SS                                                  ((uint16_t) 0x0100)

#ifndef ADS1115
    /* DR field values */
    #define CONFIG_DR_128SPS                                                ((uint16_t) 0x0000)
    #define CONFIG_DR_250SPS                                                ((uint16_t) 0x0020)
    #define CONFIG_DR_490SPS                                                ((uint16_t) 0x0040)
    #define CONFIG_DR_920SPS                                                ((uint16_t) 0x0060)
    #define CONFIG_DR_1600SPS                                               ((uint16_t) 0x0080)
    #define CONFIG_DR_2400SPS                                               ((uint16_t) 0x00A0)
    #define CONFIG_DR_3300_1SPS                                             ((uint16_t) 0x00C0)
    #define CONFIG_DR_3300_2SPS                                             ((uint16_t) 0x00E0)
#else
    /* DR field values */
    #define CONFIG_DR_8SPS                                                  ((uint16_t) 0x0000)
    #define CONFIG_DR_16SPS                                                 ((uint16_t) 0x0020)
    #define CONFIG_DR_32SPS                                                 ((uint16_t) 0x0040)
    #define CONFIG_DR_64SPS                                                 ((uint16_t) 0x0060)
    #define CONFIG_DR_128SPS                                                ((uint16_t) 0x0080)
    #define CONFIG_DR_250SPS                                                ((uint16_t) 0x00A0)
    #define CONFIG_DR_475SPS                                                ((uint16_t) 0x00C0)
    #define CONFIG_DR_860SPS                                                ((uint16_t) 0x00E0)
#endif
    /* COMP_MODE field values */
    #define CONFIG_COMP_MODE_TRAD                                           ((uint16_t) 0x0000)
    #define CONFIG_COMP_MODE_WINDOW                                         ((uint16_t) 0x0010)

    /* COMP_POL field values */
    #define CONFIG_COMP_POL_ACTIVE_LO                                       ((uint16_t) 0x0000)
    #define CONFIG_COMP_POL_ACTIVE_HI                                       ((uint16_t) 0x0008)

    /* COMP_LAT field values */
    #define CONFIG_COMP_LAT_NON_LATCH                                       ((uint16_t) 0x0000)
    #define CONFIG_COMP_LAT_LATCH                                           ((uint16_t) 0x0004)

    /* COMP_QUE field values */
    #define CONFIG_COMP_QUE_ASSERT1                                         ((uint16_t) 0x0000)
    #define CONFIG_COMP_QUE_ASSERT2                                         ((uint16_t) 0x0001)
    #define CONFIG_COMP_QUE_ASSERT4                                         ((uint16_t) 0x0002)
    #define CONFIG_COMP_QUE_DISABLE                                         ((uint16_t) 0x0003)



/* Register 0x02 (LO_THRESH) definition
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 * |   Bit 15  |   Bit 14  |   Bit 13  |   Bit 12  |   Bit 11  |   Bit 10  |   Bit 9   |   Bit 8   |   Bit 7   |   Bit 6   |   Bit 5   |   Bit 4   |   Bit 3   |   Bit 2   |   Bit 1   |   Bit 0   |
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 * |                                                                                       LO_THRESHOLD[15:0]                                                                                      |
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 */

    /* LO_THRESH register address */
    #define LO_THRESH_ADDRESS                                               ((uint16_t) 0x02)

    /* LO_THRESH default (reset) value */
    #define LO_THRESH_DEFAULT                                               ((uint16_t) 0x8000)

    /* LO_THRESH register field masks */
    #define LO_THRESH_LO_THRESHOLD_MASK                                     ((uint16_t) 0xFFFF)



/* Register 0x03 (HI_THRESH) definition
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 * |   Bit 15  |   Bit 14  |   Bit 13  |   Bit 12  |   Bit 11  |   Bit 10  |   Bit 9   |   Bit 8   |   Bit 7   |   Bit 6   |   Bit 5   |   Bit 4   |   Bit 3   |   Bit 2   |   Bit 1   |   Bit 0   |
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 * |                                                                                       HI_THRESHOLD[15:0]                                                                                      |
 * |-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
 */

    /* HI_THRESH register address */
    #define HI_THRESH_ADDRESS                                               ((uint16_t) 0x03)

    /* HI_THRESH default (reset) value */
    #define HI_THRESH_DEFAULT                                               ((uint16_t) 0x7FFF)

    /* HI_THRESH register field masks */
    #define HI_THRESH_HI_THRESHOLD_MASK                                     ((uint16_t) 0xFFFF)



#endif /* ADS1115_H_ */

/**
 * @file ads1115.c
 *
 * @brief This file contains all basic communication and device setup for the ADS1115 device family.
 * @warning This software utilizes TI Drivers
 *
 * @copyright Copyright (C) 2021 Texas Instruments Incorporated - http://www.ti.com/
 *
 *  Redistribution and use in source and binary forms, with or without
 *  modification, are permitted provided that the following conditions
 *  are met:
 *
 *    Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 *    Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in the
 *    documentation and/or other materials provided with the
 *    distribution.
 *
 *    Neither the name of Texas Instruments Incorporated nor the names of
 *    its contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 *  THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 *  "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
 *  LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
 *  A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
 *  OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 *  SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 *  LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
 *  DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
 *  THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
 *  (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
 *  OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 *
 */

#include <evm/ADS1115.h>
#include <ti/devices/msp432e4/driverlib/sysctl.h>
#include <ti/drivers/I2C.h>
#include <ti/drivers/i2c/I2CMSP432E4.h>
#include "settings.h"

const char *adcRegisterNames[NUM_REGISTERS] = {"DATA", "CONFIG", "LO_THRESH", "HI_THRESH"};

//****************************************************************************
//
// Internal variables
//
//****************************************************************************

// Array used to recall device register map configurations */
static uint16_t registerMap[NUM_REGISTERS];

//****************************************************************************
//
// Function Definitions
//
//****************************************************************************
/**
 *
 * @brief restoreRegisterDefaults()
 * Updates the registerMap[] array to its default values.
 *
 * NOTES:
 * - If the MCU keeps a copy of the ADS1x15 register settings in memory,
 * then it is important to ensure that these values remain in sync with the
 * actual hardware settings. In order to help facilitate this, this function
 * should be called after powering up or resetting the device.
 *
 * - Reading back all of the registers after resetting the device can
 * accomplish the same result.
 *
 * @return none
 */
static void restoreRegisterDefaults(void)
{
    registerMap[CONFIG_ADDRESS]       = CONFIG_DEFAULT;
	/* The threshold register do not exist on the TLA2024, ADS1013 or ADS1113 */
    registerMap[LO_THRESH_ADDRESS]    = LO_THRESH_DEFAULT;
    registerMap[HI_THRESH_ADDRESS]    = HI_THRESH_DEFAULT;
}

/**
 *
 * @brief adcStartup()
 * Example start up sequence for the ADS1115.
 *
 * Before calling this function, the device must be powered and
 * the I2C/GPIO pins of the MCU must have already been configured.
 *
 * @return none
 */
void adcStartup(void)
{
    //
    // (OPTIONAL) Provide additional delay time for power supply settling
    //
    delay_ms(50);

    //
    // (REQUIRED) Initialize internal 'registerMap' array with device default settings
    //
    restoreRegisterDefaults();

    //
    // (OPTIONAL) Read back all registers and Check STATUS register (if exists) for faults
    //
    registerMap[CONFIG_ADDRESS] = readSingleRegister(CONFIG_ADDRESS);
}

/**
 *
 * @brief readSingleRegister()
 * Reads the contents of a single register at the specified address.
 *
 * @param[in] address Is the 8-bit address of the register to read.
 *
 * @return The 16-bit register read result as an unsigned value, but conversion
 * is binary 2's complement.
 */
uint16_t readSingleRegister(uint8_t address)
{
    //
    // Check that the register address is in range
    //
    assert(address <= MAX_REGISTER_ADDRESS);
    uint16_t regValue = 0;
    uint8_t regRXdata[4] = {0};
    int8_t retStatus;
    retStatus = receiveI2CData(address, regRXdata, 2);
    if(retStatus != false)
    {
        /* I2C communication error took place...Insert a handling routine here */
        return 0;
    }
    regValue =  combineBytes(regRXdata[0], regRXdata[1]);
    registerMap[address] = regValue;
    return regValue;
}
/**
 *
 * @brief readConversionRegister()
 * Reads the contents of the conversion register.
 *
 * @return the 16-bit register conversion result as an signed 32-bit value
 */
int32_t readConversionRegister(void)
{
    int32_t regValue = 0;
    uint8_t regRXdata[4] = {0};
    int8_t retStatus;
    retStatus = receiveI2CDataNoWrite(CONVERSION_ADDRESS, regRXdata, 2, false);
    if(retStatus != false)
    {
        /* I2C communication error took place...Insert a handling routine here */
        return 0;
    }
    regValue = signExtend(regRXdata);
    return regValue;
}

/**
 *
 * @brief writeSingleRegister()
 * Writes data to a single register and also read it back for internal
 * confirmation.
 *
 * @param[in] address Is the address of the register to write to.
 * @param[in] data Is the value to write.
 *
 * @return when true, data transmitted does not match data read
 */
bool writeSingleRegister(uint8_t address, uint16_t data)
{

    //
    // Check that the register address is in range
    //
    assert(address <= MAX_REGISTER_ADDRESS);
    uint8_t regData[2];

    regData[0] = data>>8;
    regData[1] = data & 0xFF;
    int8_t retStatus;
    uint16_t regValue;
    //
    // Cannot write to the conversion register
    //
    if(address == 0)
    {
        /* Insert a handling routine here */
        return 0;
    }
    retStatus = sendI2CData(address, regData, 2);
    if(retStatus != false)
    {
        /* I2C communication error took place...Insert a handling routine here */
        return 0;
    }

    retStatus = receiveI2CData(address, regData, 2);
    if(retStatus != false)
    {
        /* I2C communication error took place...Insert a handling routine here */
        return 0;
    }

    regValue = combineBytes(regData[0], regData[1]);
    if (address == CONFIG_ADDRESS)
    {
        if ((regValue & 0x7FFF) != (data & 0x7FFF)) return 1;
            registerMap[CONFIG_ADDRESS] = regValue & 0x7FFF;
    }
    else
    {
        if (regValue != data) return 1;
        registerMap[address] = regValue;
    }
    return 0;

}
/**
 *
 * @brief writeSingleRegisterNoRead()
 * Writes data to a single register with no readback
 * confirmation.
 *
 * @param[in] address Is the address of the register to write to.
 * @param[in] data Is the value to write.
 *
 * @return true on success, otherwise false
 */
bool writeSingleRegisterNoRead(uint8_t address, uint16_t data)
{

    //
    // Check that the register address is in range
    //
    assert(address <= MAX_REGISTER_ADDRESS);
    uint8_t regData[2];

    regData[0] = data>>8;
    regData[1] = data & 0xFF;
    int8_t retStatus;
    //
    // Cannot write to the conversion register
    //
    if(address == 0)
    {
        /* Insert a handling routine here */
        return 0;
    }
    retStatus = sendI2CRegPointer(address, regData, 2);
    if(retStatus != false)
    {
        /* I2C communication error took place...Insert a handling routine here */
        return 0;
    }

    registerMap[CONFIG_ADDRESS] = data & 0x7FFF;
    return 1;
}
/**
 *
 * @brief readData()
 * Reads 2 bytes of ADC data.
 *
 * @return signed 16-bit integer
 */
int16_t readData(void)
{
    uint16_t regValue;
    // Get the contents of the config register, we want to keep the configuration just start the conversion
    regValue = 1<<15 | registerMap[CONFIG_ADDRESS];
    uint8_t regData[2];
    int8_t retStatus;
    regData[0] = regValue>>8;
    regData[1] = regValue & 0xFF;
    //
    // Write to the config register and start a conversion
    //
    retStatus = sendI2CData(CONFIG_ADDRESS, regData, 2);
    if(retStatus != false)
    {
        /* I2C communication error took place...Insert a handling routine here */
        return 0;
    }
    //
    // To reduce the polling of communication delay a minimum time before checking
    //  the end of conversion based on the selected data rate
    //
    delayBeforeRead();
    //
    // If operating in single-shot mode check for EOC
    //
    if(regValue & CONFIG_MODE_MASK)
    {
        //
        // Poll for the end of conversion flag in the config register
        //
        regData[0] = 0;
        do
        {
            retStatus = receiveI2CData(CONFIG_ADDRESS, regData, 2);
            if(retStatus != false)
            {
                /* I2C communication error took place...Insert a handling routine here */
                return 0;
            }
        } while (!(regData[0] & 0x80) );

    }

    // Read conversion results
    registerMap[CONVERSION_ADDRESS] = readSingleRegister(CONVERSION_ADDRESS);
    return (int16_t) registerMap[CONVERSION_ADDRESS];
}
/**
 *
 * @brief startAdcConversion()
 * Starts the ADC conversion.
 *
 * @return  uint16_t configuration register
 *
 */
uint16_t startAdcConversion(void)
{
    int8_t retStatus;
    // Get the contents of the config register, we want to keep the configuration just start the conversion
    uint16_t regValue = registerMap[CONFIG_ADDRESS];
    regValue = CONFIG_OS_MASK | regValue;
    retStatus = writeSingleRegisterNoRead(CONFIG_ADDRESS, regValue);
    if(retStatus == false)
    {
        // Add error handling routine
        return 0;
    }
    return regValue;
}
/**
 *
 * @brief stopAdcConversion()
 * Stops the ADC conversion for device in continuous conversion mode.
 *
 * @return  uint16_t configuration register
 *
 */
uint16_t stopAdcConversion(void)
{
    int8_t retStatus;
    // Get the contents of the config register, we want to keep the configuration except for MODE
    uint16_t regValue = registerMap[CONFIG_ADDRESS];
    regValue |= CONFIG_MODE_SS;
    retStatus = writeSingleRegisterNoRead(CONFIG_ADDRESS, regValue);
    if(retStatus == false)
    {
        // Add error handling routine
        return 0;
    }
    registerMap[CONFIG_ADDRESS] = regValue;
    return regValue;
}
/**
 *
 * @brief delayBeforeRead()
 * Delays a specific amount of time before checking for EOC based on data rate.
 *
 * @return  none
 *
 */
void delayBeforeRead(void)
{
    uint16_t regValue = 0;
    // Get the contents of the config register, we want to keep the configuration just start the conversion
    regValue = 1<<15 | registerMap[CONFIG_ADDRESS];
#ifdef ADS1115
    if(regValue & CONFIG_MODE_MASK)
    {   //Conversion is single-shot mode
        switch((regValue & CONFIG_DR_MASK))
        {
            case CONFIG_DR_8SPS:
                delay_us(121399);
                break;
            case CONFIG_DR_16SPS:
                delay_us(59760);
                break;
            case CONFIG_DR_32SPS:
                delay_us(29585);
                break;
            case CONFIG_DR_64SPS:
                delay_us(14610);
                break;
            case CONFIG_DR_128SPS:
                delay_us(7173);
                break;
            case CONFIG_DR_250SPS:
                delay_us(3448);
                break;
            case CONFIG_DR_475SPS:
                delay_us(1659);
                break;
            case CONFIG_DR_860SPS:
                delay_us(758);
                break;
        }
    }
    else
    {
        // Conversion is in continuous conversion mode
        switch((regValue & CONFIG_DR_MASK))
        {
            case CONFIG_DR_8SPS:
                delay_us(120043);
                break;
            case CONFIG_DR_16SPS:
                delay_us(59115);
                break;
            case CONFIG_DR_32SPS:
                delay_us(29485);
                break;
            case CONFIG_DR_64SPS:
                delay_us(14655);
                break;
            case CONFIG_DR_128SPS:
                delay_us(7249);
                break;
            case CONFIG_DR_250SPS:
                delay_us(3631);
                break;
            case CONFIG_DR_475SPS:
                delay_us(1838);
                break;
            case CONFIG_DR_860SPS:
                delay_us(943);
                break;
        }
    }
#else
    if(regValue & CONFIG_MODE_MASK)
    {   //Conversion is single-shot mode
    switch((regValue & CONFIG_DR_MASK))
        {
            case CONFIG_DR_128SPS:
                delay_us(7448);
                break;
            case CONFIG_DR_250SPS:
                delay_us(3635);
                break;
            case CONFIG_DR_490SPS:
                delay_us(1676);
                break;
            case CONFIG_DR_920SPS:
                delay_us(722);
                break;
            case CONFIG_DR_1600SPS:
                delay_us(260);
                break;
            case CONFIG_DR_2400SPS:
                delay_us(52);
                break;
            case CONFIG_DR_3300_1SPS:
            case CONFIG_DR_3300_2SPS:
                break;
        }
    }
    else
    {   // Conversion is in continuous conversion mode
        switch((regValue & CONFIG_DR_MASK))
        {
            case CONFIG_DR_128SPS:
                delay_us(7249);
                break;
            case CONFIG_DR_250SPS:
                delay_us(3627);
                break;
            case CONFIG_DR_490SPS:
                delay_us(1778);
                break;
            case CONFIG_DR_920SPS:
                delay_us(882);
                break;
            case CONFIG_DR_1600SPS:
                delay_us(441);
                break;
            case CONFIG_DR_2400SPS:
                delay_us(241);
                break;
            case CONFIG_DR_3300_1SPS:
            case CONFIG_DR_3300_2SPS:
                delay_us(129);
                break;
        }
    }
#endif
}
/**
 *
 * @brief resetDevice()
 * Resets the device and reinitializes the register map array
 * maintained in firmware to default values.
 *
 * @return  Returns boolean; communication sent is true, otherwise false.
 *
 */
bool resetDevice(void)
{
    uint8_t regData[2];
    regData[0] = 0x06;
    int8_t retStatus;
    //
    // Send a general call reset
    //
    retStatus = sendI2CData(0x00,regData,1);
    if(retStatus!=0) return retStatus;

    //
    // Read the registers to verify reset condition and store
    //
    restoreRegisterDefaults();
    return retStatus;
}

/**
 *
 * @brief getRegisterValue()
 * Getter function to access registerMap array from outside of this module.
 *
 * @param[in] address Of desired register contents to return
 *
 * NOTE: The internal registerMap arrays stores the last known register value,
 * since the last read or write operation to that register. This function
 * does not communicate with the device to retrieve the current register value.
 * For the most up-to-date register data or retrieving the value of a hardware
 * controlled register, it is recommend to use readSingleRegister() to read the
 * current register value.
 *
 * @return unsigned 16-bit register value.
 */
uint16_t getRegisterValue(uint8_t address)
{
    assert(address <= MAX_REGISTER_ADDRESS);
    return registerMap[address];
}

//****************************************************************************
//
// Helper functions
//
//****************************************************************************

/**
 *
 * @brief upperByte()
 * Takes a 16-bit word and returns the most-significant byte.
 *
 * @param[in] uint16_Word Is the original 16-bit word.
 *
 * @return 8-bit most-significant byte.
 */
uint8_t upperByte(uint16_t uint16_Word)
{
    uint8_t msByte;
    msByte = (uint8_t) ((uint16_Word >> 8) & 0x00FF);

    return msByte;
}

/**
 *
 * @brief lowerByte()
 * Takes a 16-bit word and returns the least-significant byte.
 *
 * @param[in] uint16_Word Is the original 16-bit word.
 *
 * @return 8-bit least-significant byte.
 */
uint8_t lowerByte(uint16_t uint16_Word)
{
    uint8_t lsByte;
    lsByte = (uint8_t) (uint16_Word & 0x00FF);

    return lsByte;
}

/**
 *
 * @brief combineBytes()
 * Takes two 8-bit words and returns a concatenated 16-bit word.
 *
 * @param[in] upperByte Is the 8-bit value that will become the MSB of the 16-bit word.
 * @param[in] lowerByte Is the 8-bit value that will become the LSB of the 16-bit word.
 *
 * @return concatenated unsigned 16-bit word.
 */
uint16_t combineBytes(uint8_t upperByte, uint8_t lowerByte)
{
    uint16_t combinedValue;
    combinedValue = ((uint16_t) upperByte << 8) | ((uint16_t) lowerByte);

    return combinedValue;
}

/**
 *
 * @brief combineDataBytes()
 * Combines ADC data bytes into a single signed 32-bit word.
 *
 * @param[in] dataBytes Is a pointer to uint8_t[] where the first element is the MSB.
 *
 * @return Returns the signed-extend 32-bit result.
 */
int32_t signExtend(const uint8_t dataBytes[])
{
    int32_t upperByte   = ((int32_t) dataBytes[0] << 24);
    int32_t lowerByte   = ((int32_t) dataBytes[1] << 16);

    return (((int32_t) (upperByte | lowerByte)) >> 16);                 // Right-shift of signed data maintains signed bit

}

特此记录

anlog

2021年11月12日
